<tc>Firetoys</tc> Extérieur autoportant <tc>Portique</tc> - 5.5m - BigRig

€4.099,00
1 en stock
This item is not eligible for discount codes
Description

Le Firetoys Outdoor Portique est fabriqué avec précision, entièrement conçu et fabriqué au Royaume-Uni, et sa résistance a été testée de manière indépendante. Ce cadre aérien extérieur de 5,5 m est idéal pour les festivals, les événements en plein air, ou même pour mettre dans le jardin si tu en as un assez grand !
Cette plateforme est adaptée et certifiée pour un maximum de deux personnes et a une limite de charge de travail (WLL) de 174kg en utilisant le facteur de sécurité (FoS) 10:1.

Veuillez noter- Toutes les poulies, mousquetons, cordes et appareils illustrés sont vendus séparément. Nous avons inclus ces articles dans certaines images à titre d'illustration seulement.

Le gréement est disponible séparément
Shipping & Returns Info
Service Coût
Deutsche Post Packet Tracked à partir de 6 €
Courrier routier 2-5 jours ouvrables à partir de €12
FedEx International Priority 1-2 jours ouvrables Voir la caisse

Informations complètes sur la livraison Retours de 60 jours sans contestation
Firetoys Sustainability Info
firetoys eco focus logoFiretoys s'engage en faveur du développement durable.
Nous sommes passionnés par la réduction de notre impact sur l'environnement. Découvre nos principales réalisations à ce jour (notamment le fait d'être alimenté à 100 % par des énergies renouvelables) et nos objectifs pour l'avenir dans notre Politique écologique
Sécurité aérienne

Le matériel aérien ne doit jamais être utilisé sans surveillance, consulte un professionnel.

Tout ce qui suit suppose que tu disposes d'un bolasnt de gréement adapté et sûr, comme un bolasnt de gréement installé par un professionnel ou un gréement autoportant réputé et évalué. Toutes les maisons/studios ne sont pas identiques, c'est pourquoi nous ne pouvons pas te conseiller sur ce point. Si tu n'as pas établi un bolasnt de gréement sûr, fais-le d'abord avec l'aide d'un ingénieur en structure/gréeur expérimenté/professionnel qui connaît bien ce que tu accroches et l'endroit où tu l'accroches.

Vois nos blogs aériens pour plus d'informations.
Par Firetoys
Afficher les détails

Big Rig, Big Opportunities

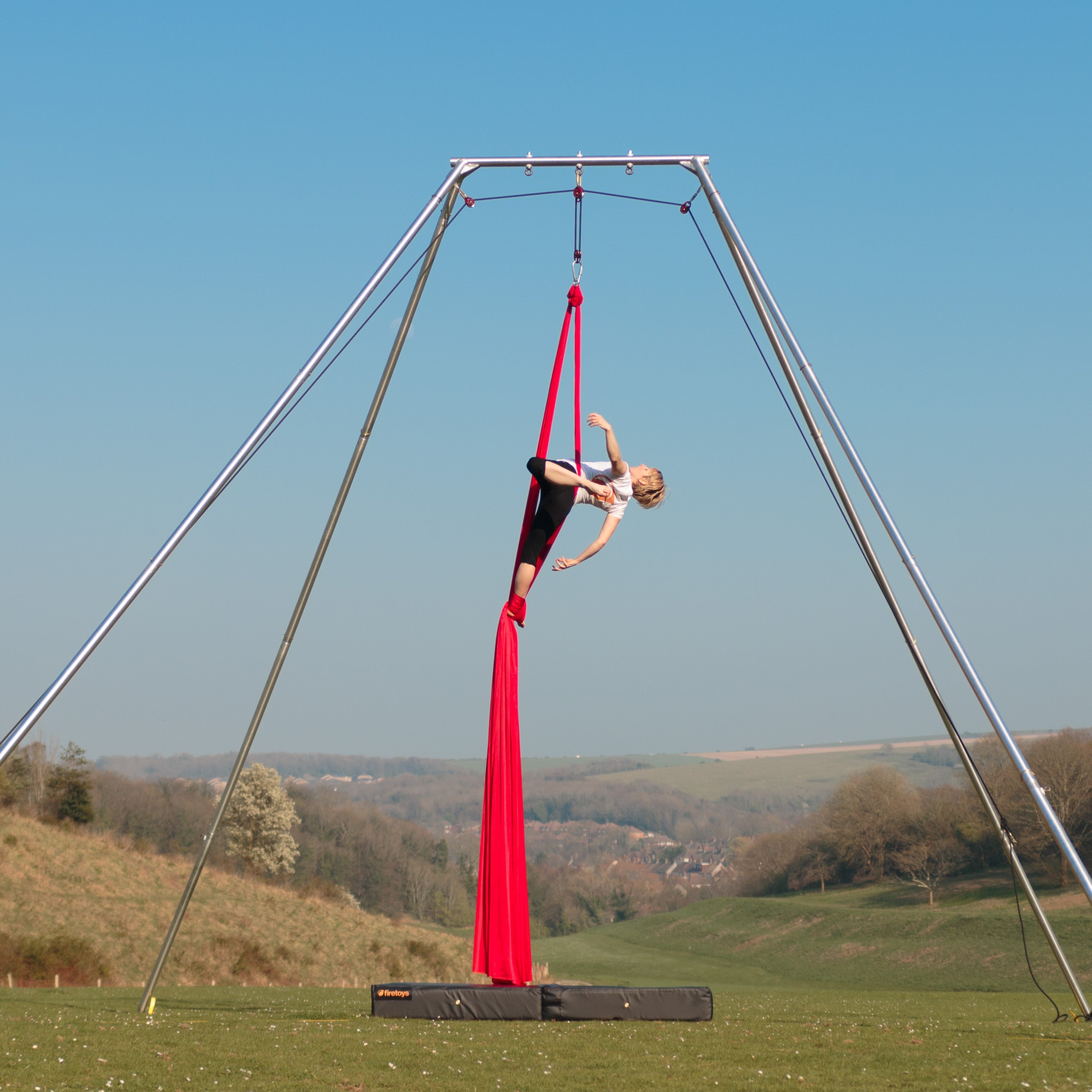

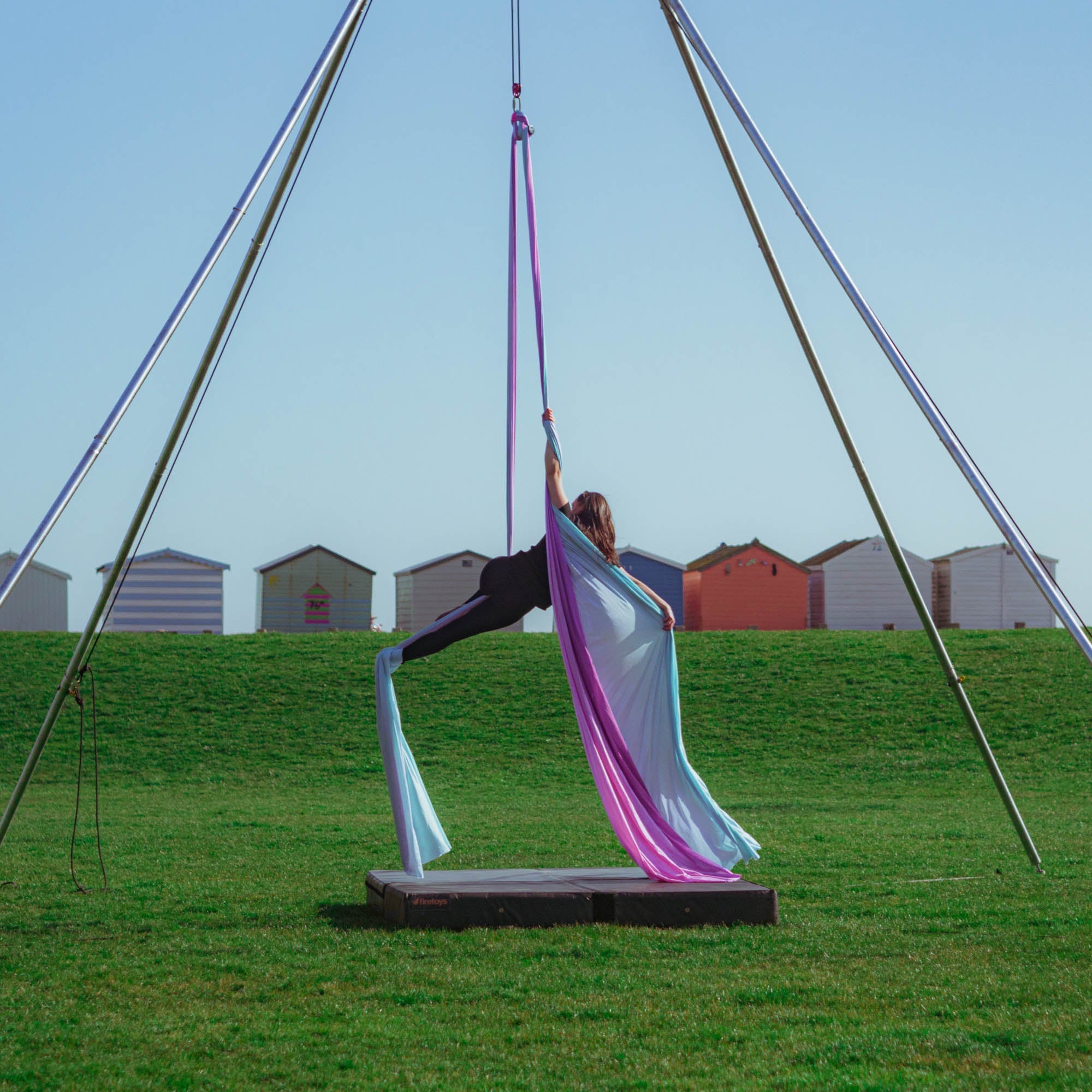

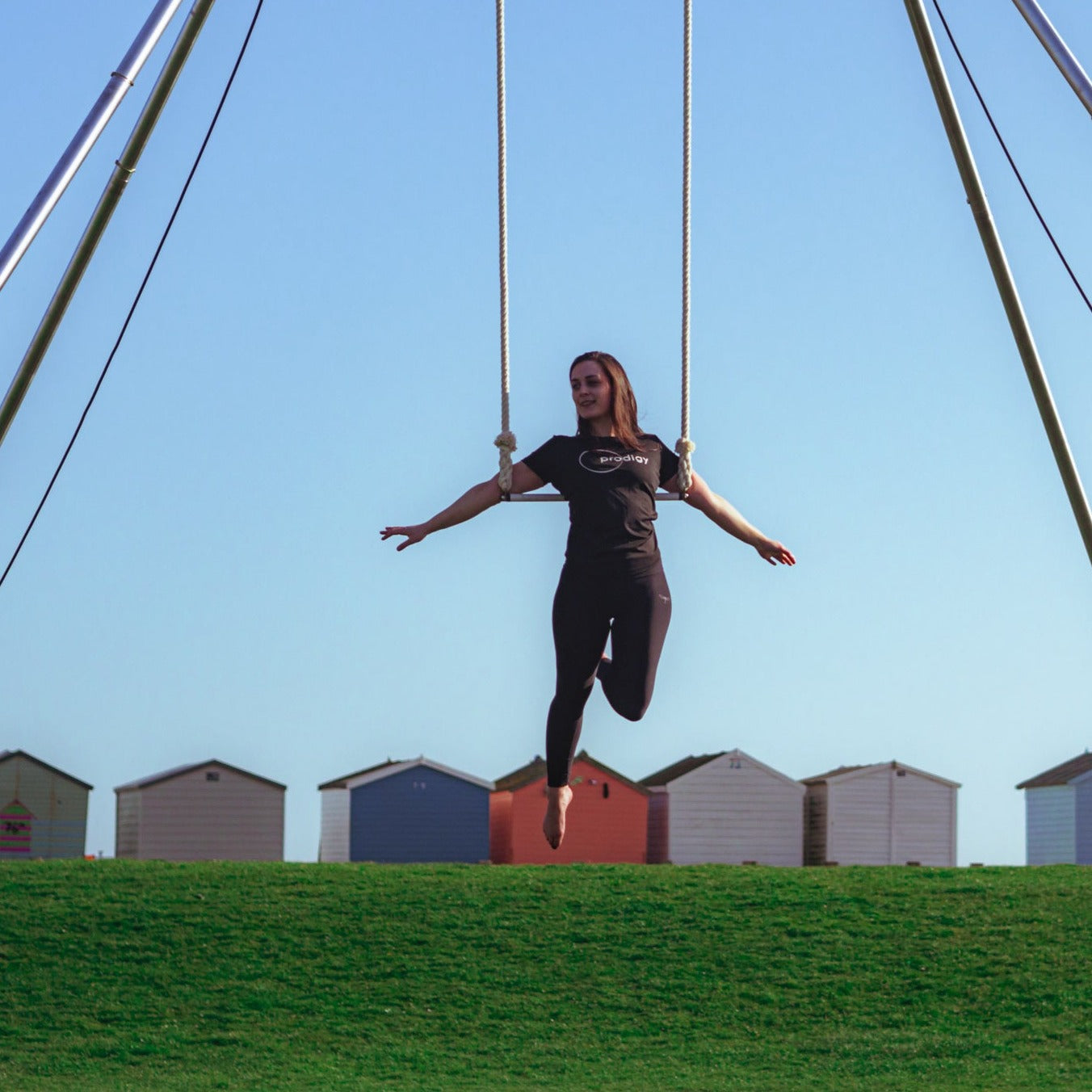

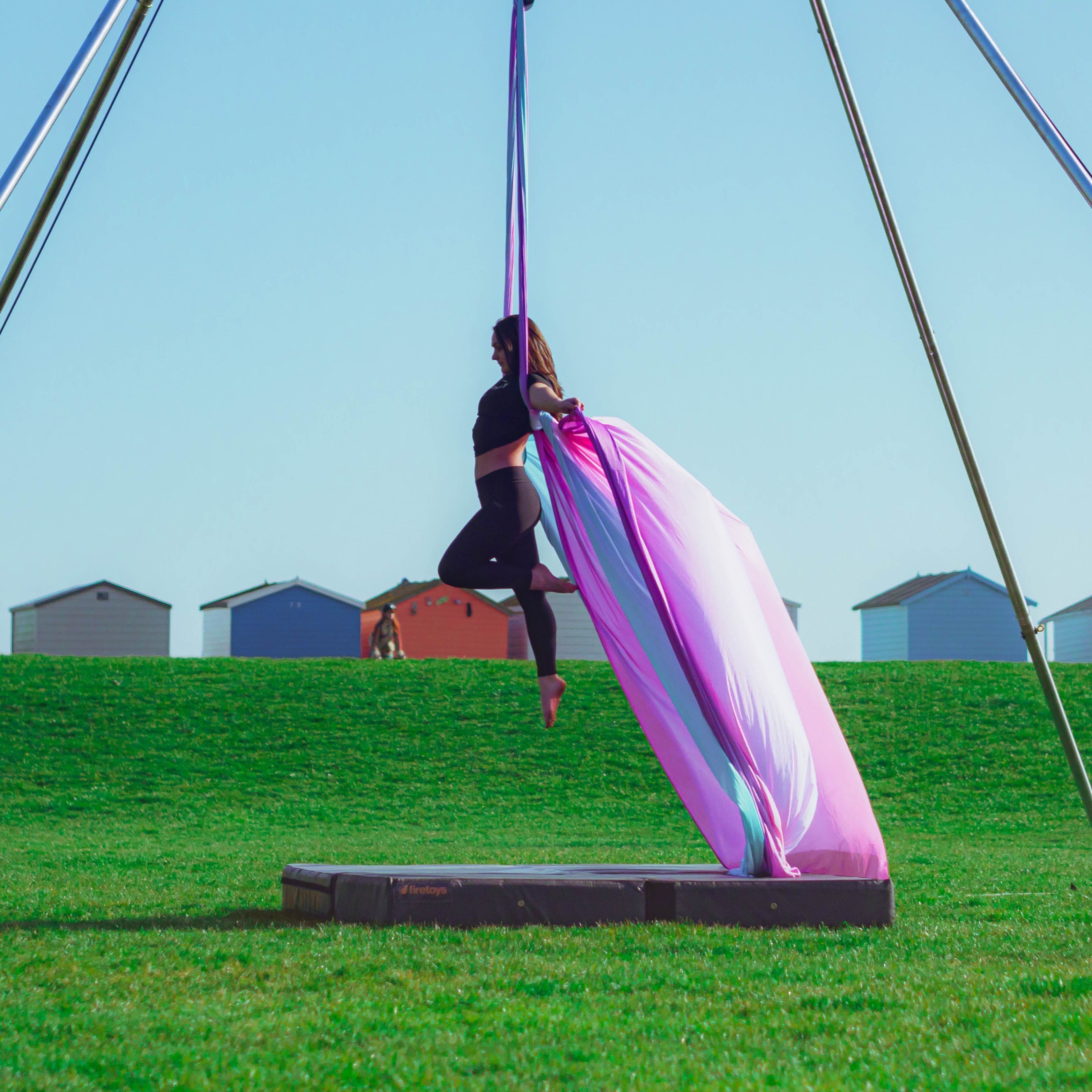

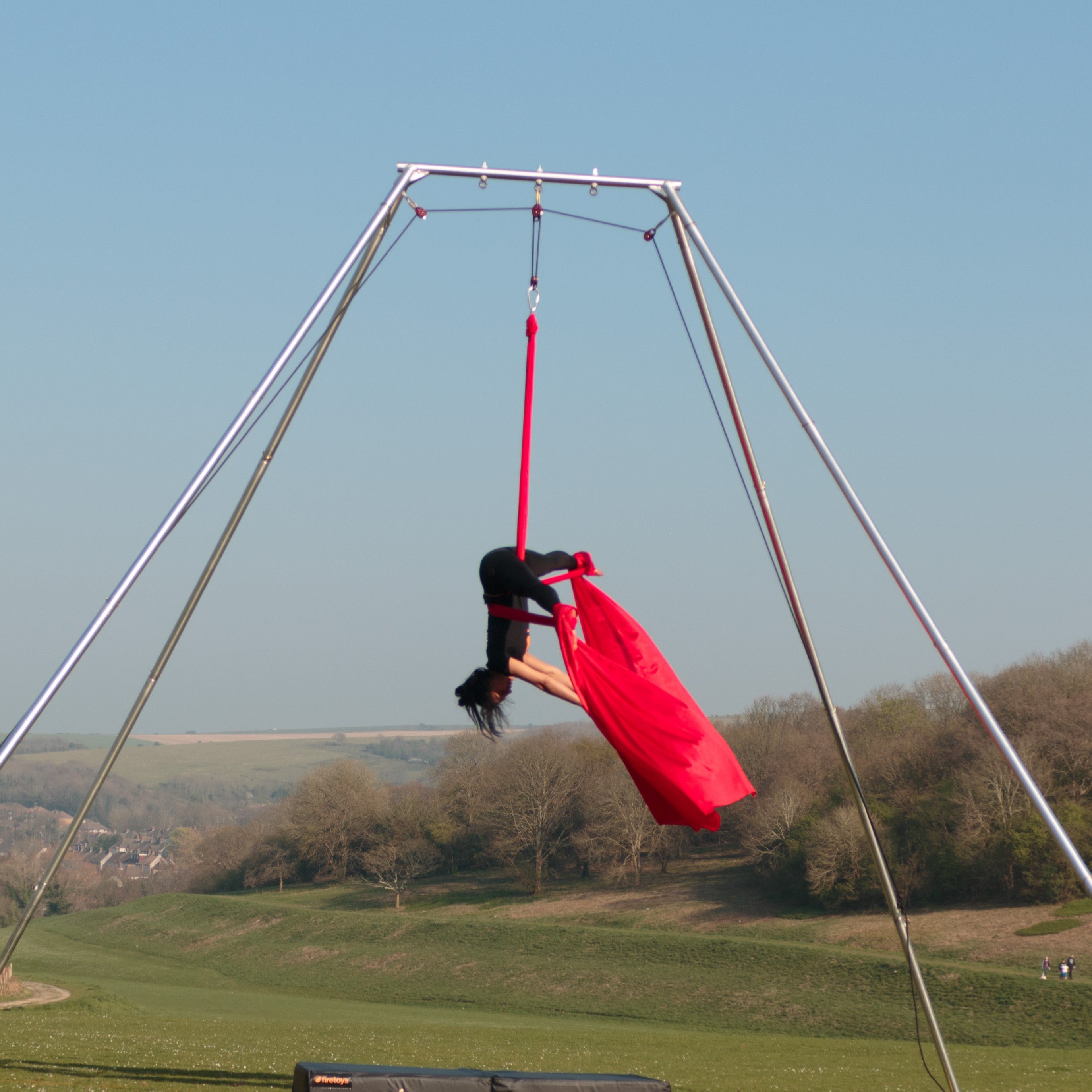

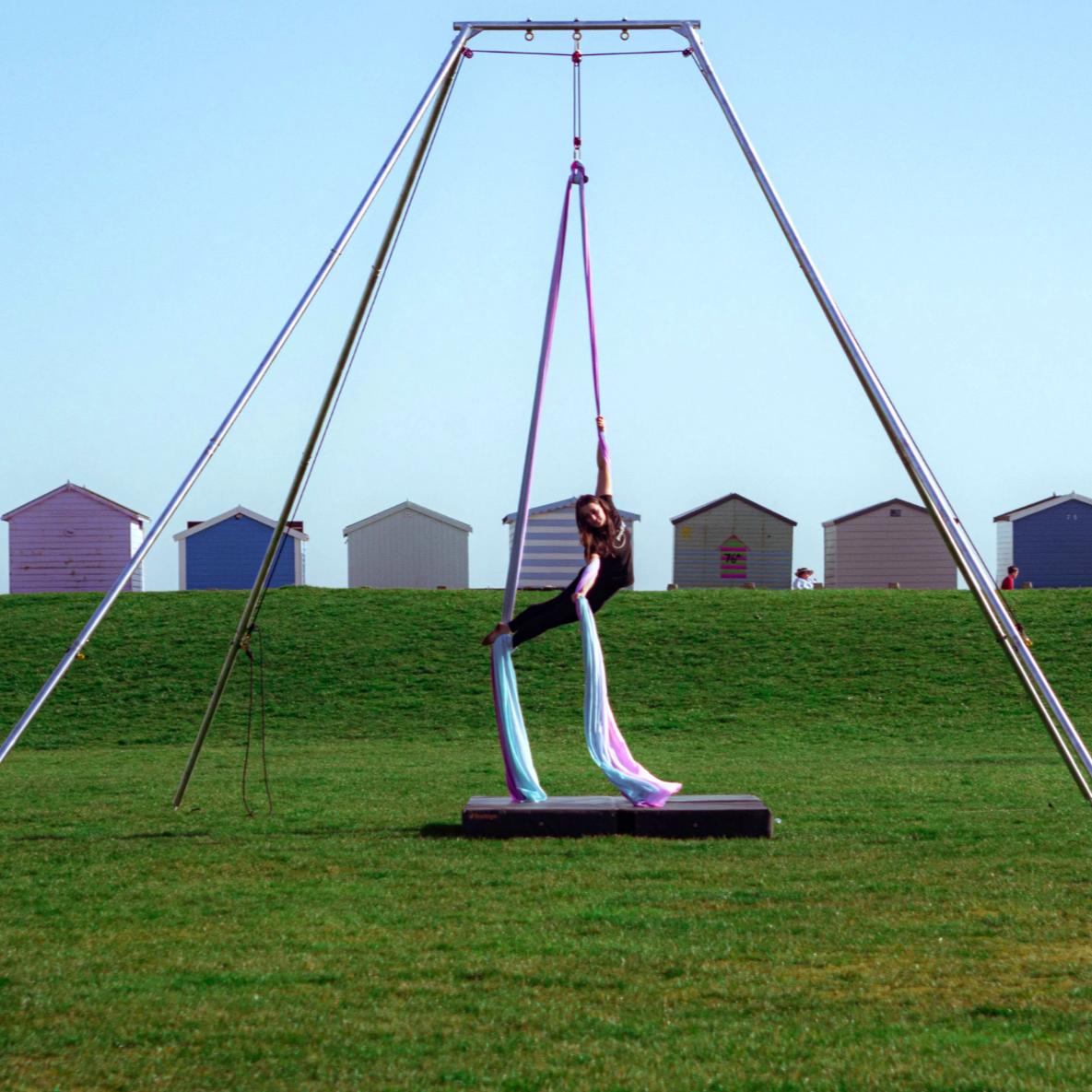

The Firetoys BigRig is a free standing outdoor aerial rig with five rigging points. Due to it's large frame, this precision-engineered aluminium rig is suitable for trapeze, aerial hoop (lyra), silks, corde lisse, and any other aerial apparatus. It's also strong enough for two-person training and performances. This rig resulted from 3 years of design, testing, and refinement and is one of Firetoys' most highly engineered products.

Spacious and Stable

This top-spec freestanding A-frame won't sway or distort even under heavy loads. It's easily assembled and disassembled without tools and fits in most estate cars.

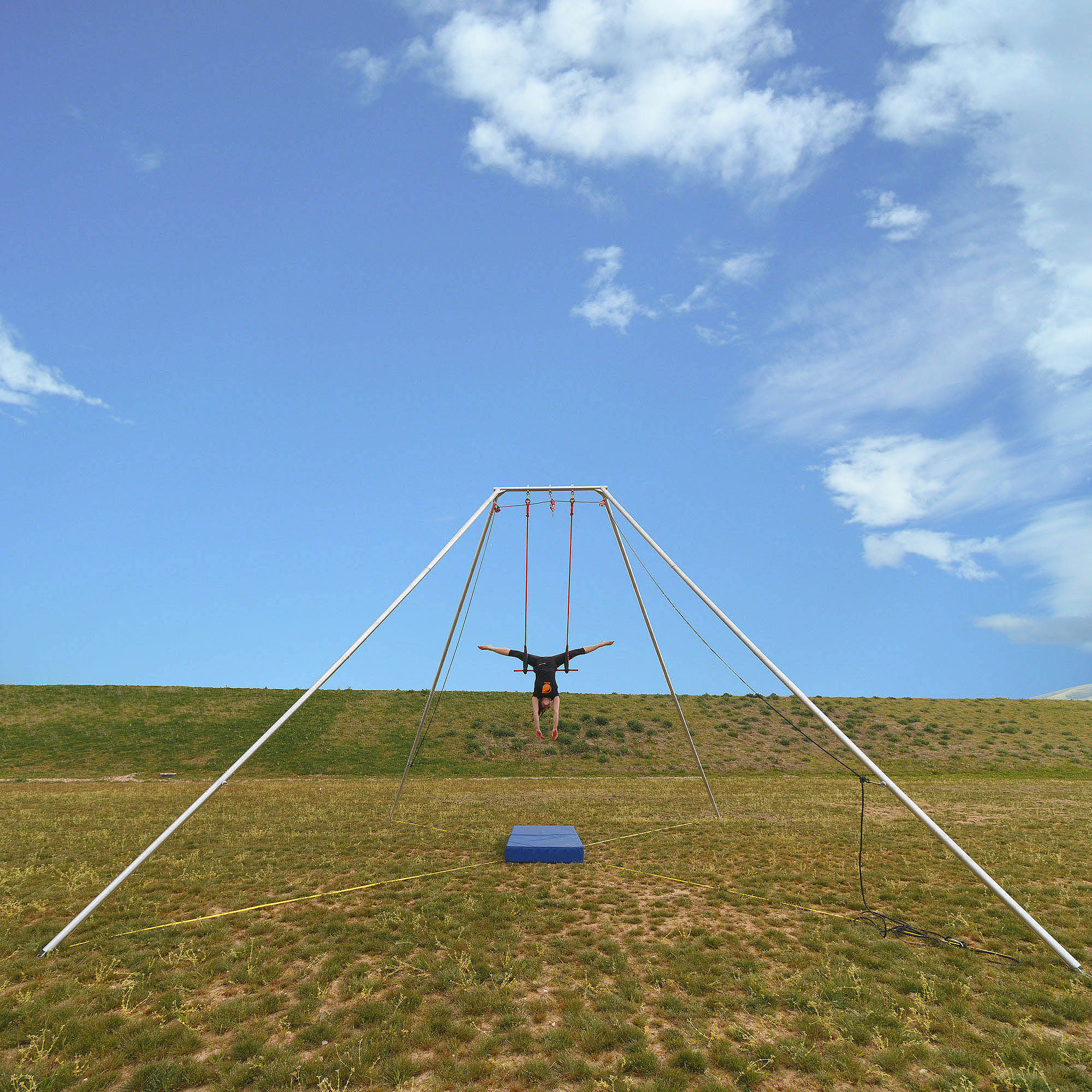

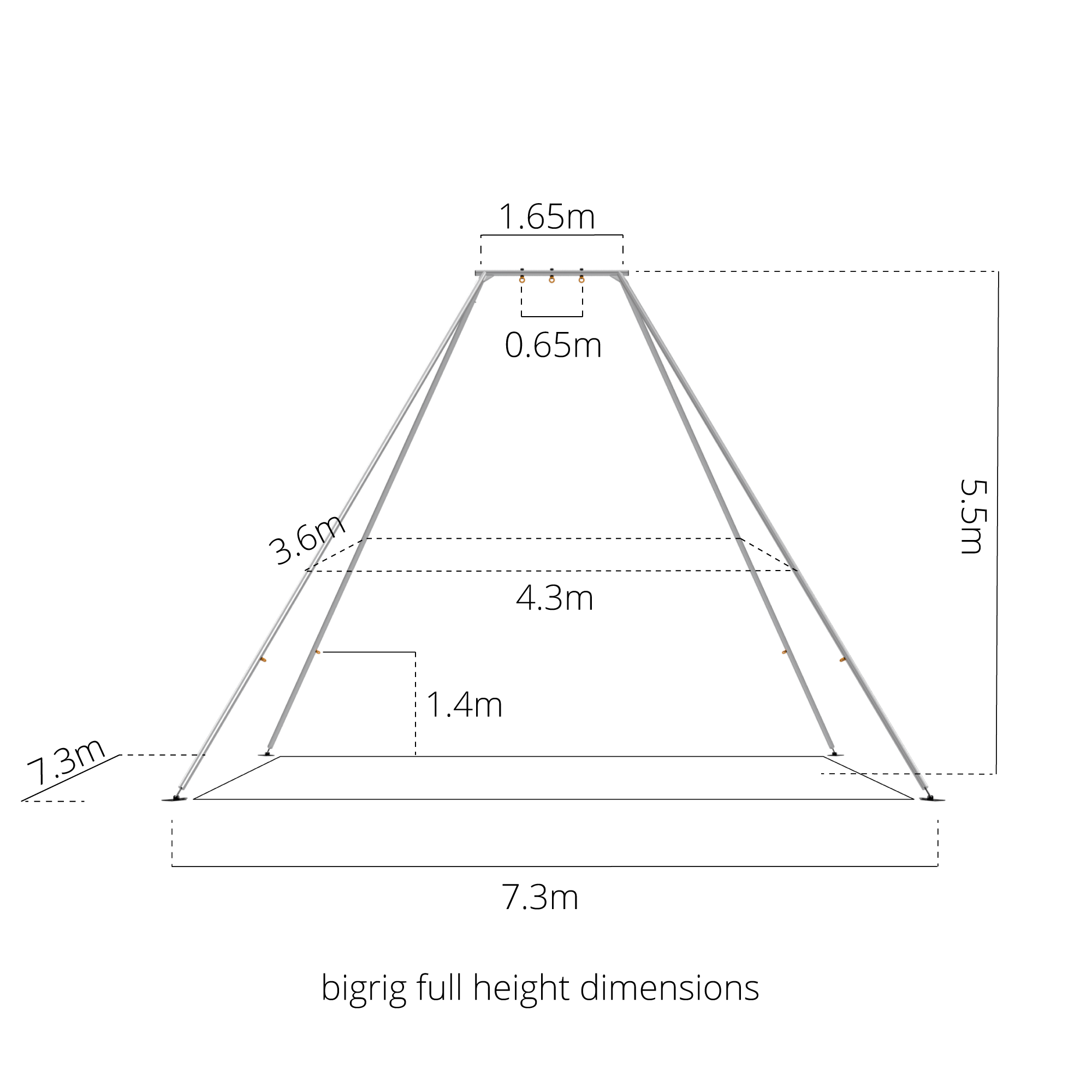

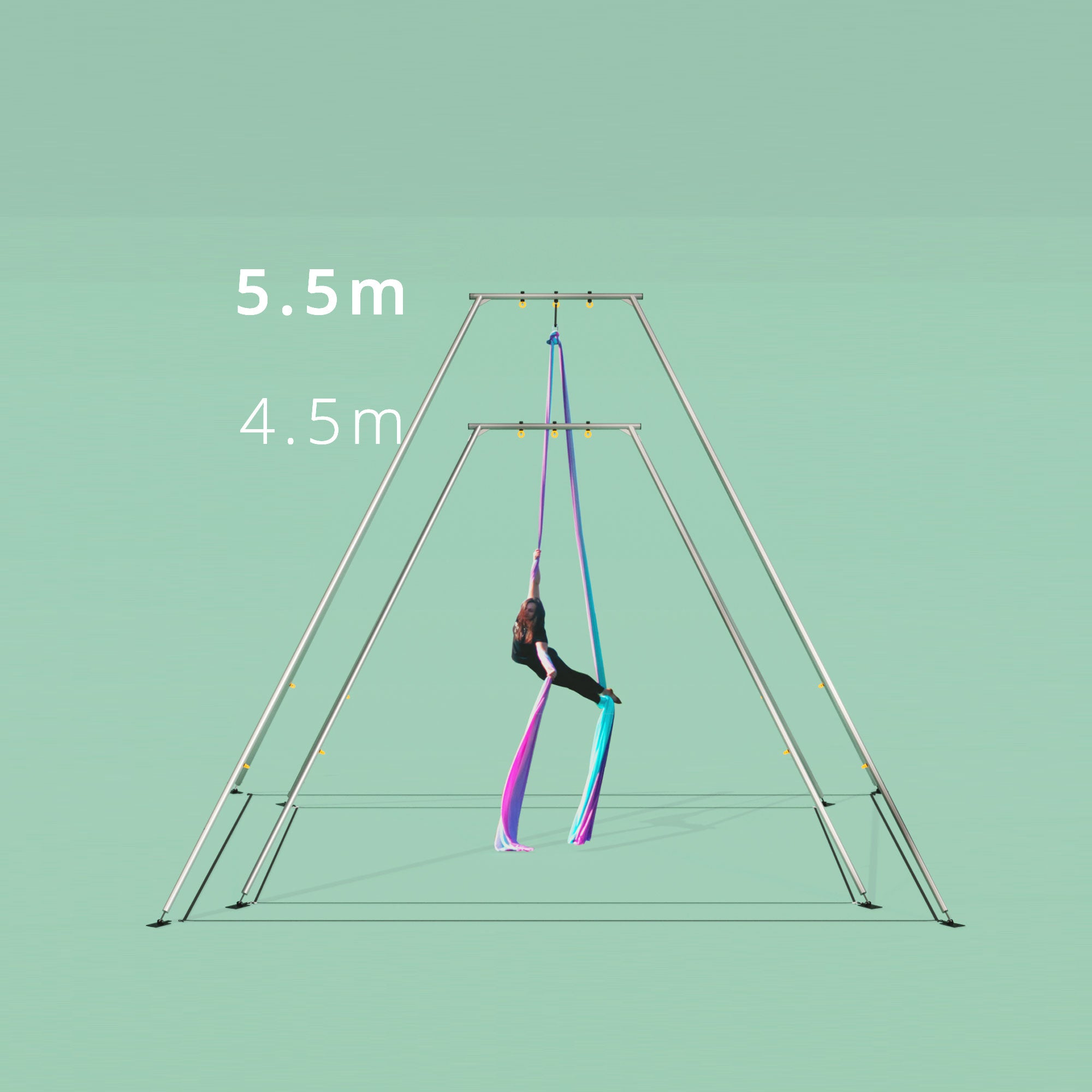

This aerial rig has two rigging height options, a 5.5m rigging point height and a 4.5m rigging point height. The BigRig's footprint is 7.3m x 7.3m when set up for the 5.5m height. When set to the lower 4.5m height, the footprint is 5.4m x 5.4m. It's completely freestanding and braced, so it doesn't require pegs. This rig will not sway or distort even with heavy beating.

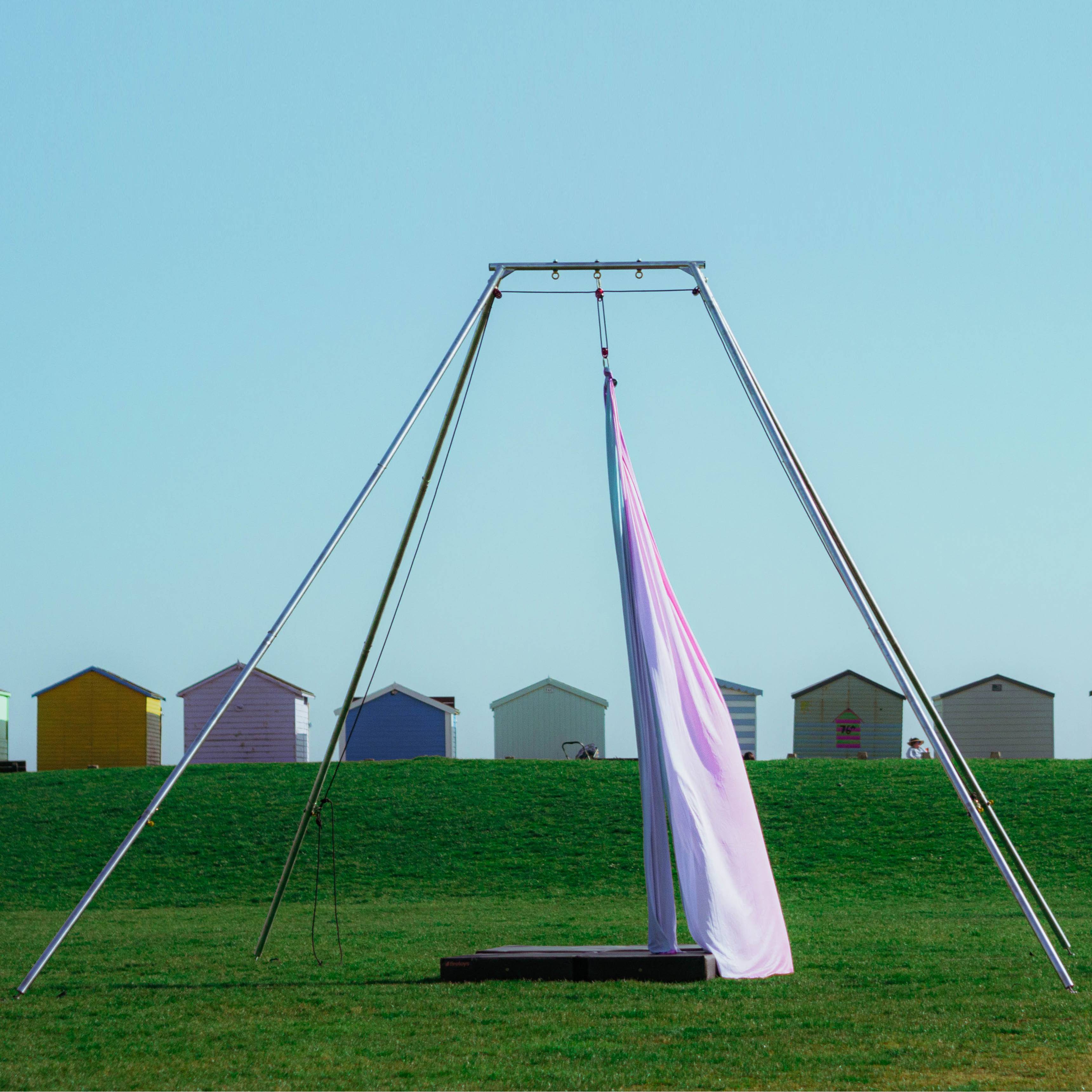

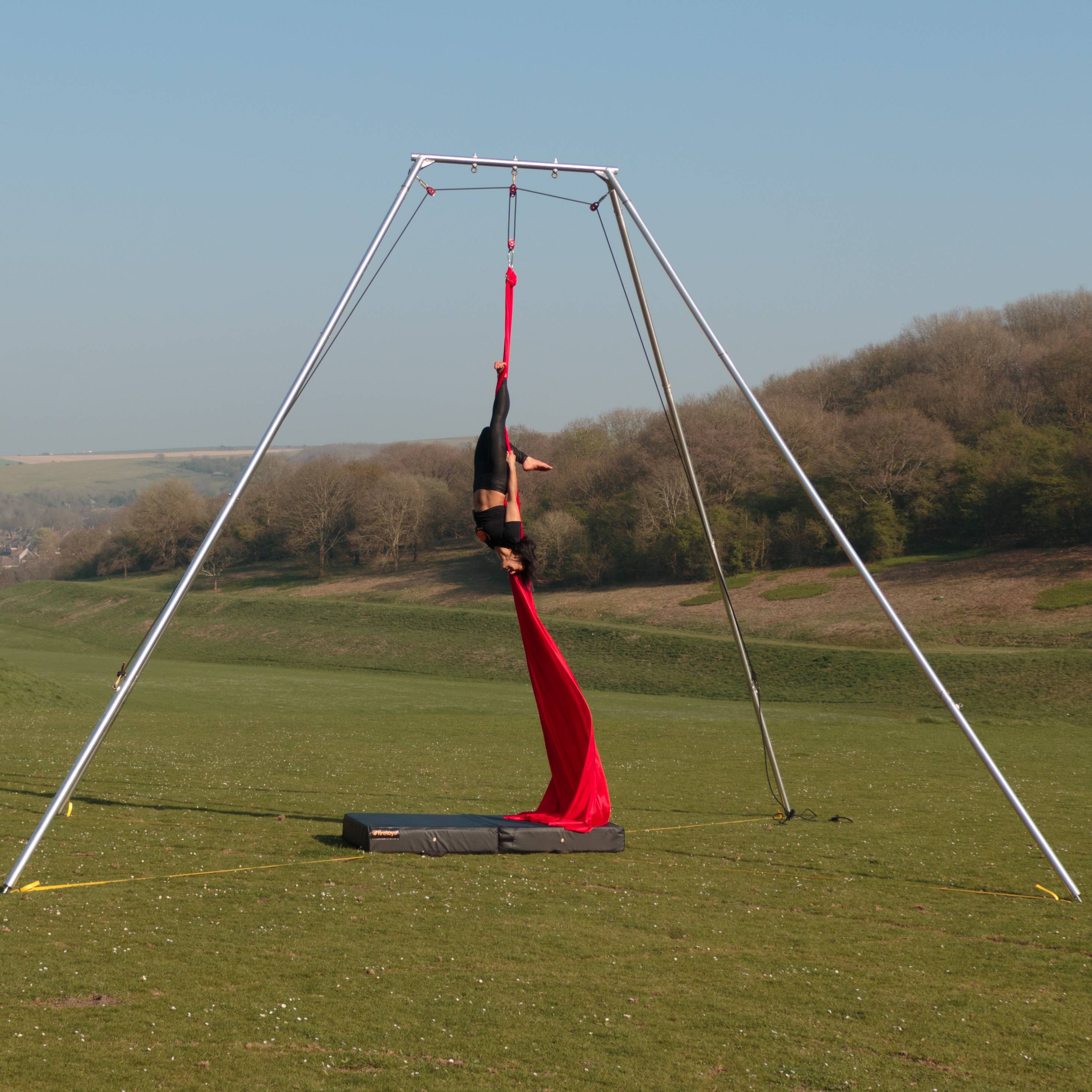

Firetoys Freestanding Outdoor Aerial Rig

Indoor and outdoor

The BigRig is made from corrosion-resistant aluminium and galvanized steel, making it suitable for external use.

Note: as with all metallic components, over extended periods of time exposed to the elements, some aesthetic degradation may occur, especially in harsh coastal environments. For this reason, we suggest dismantling the rig and storing it indoors when not in use for extended periods of time.

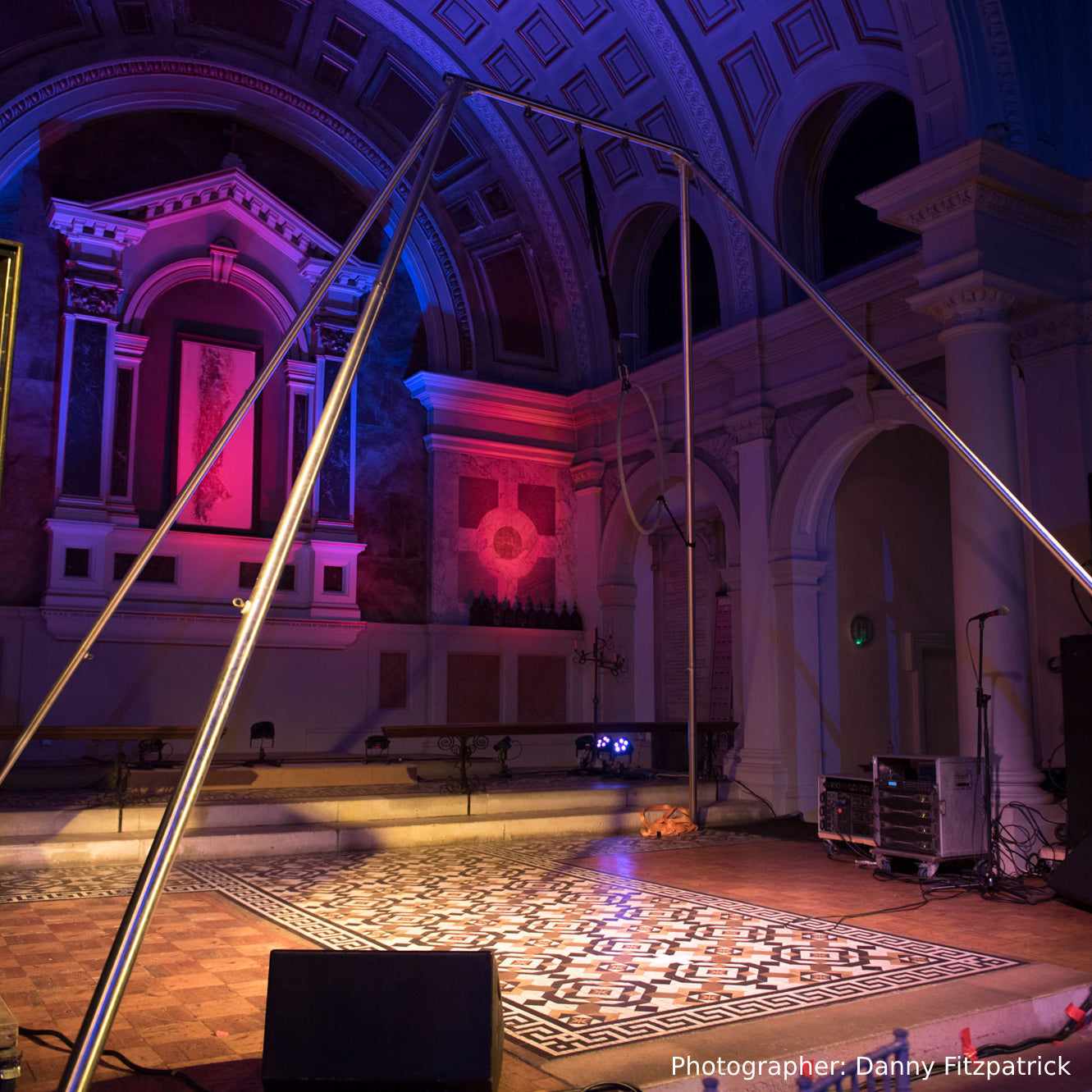

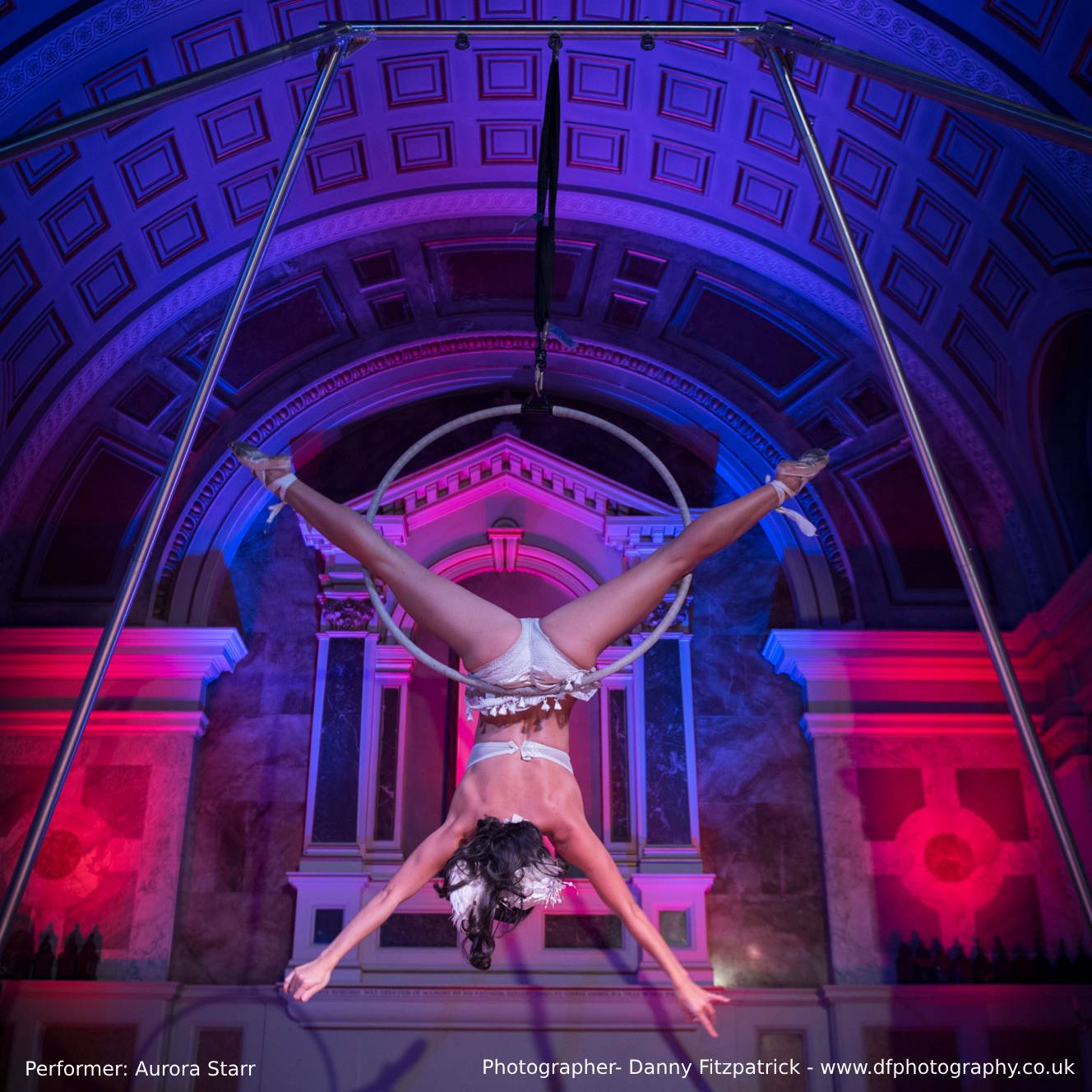

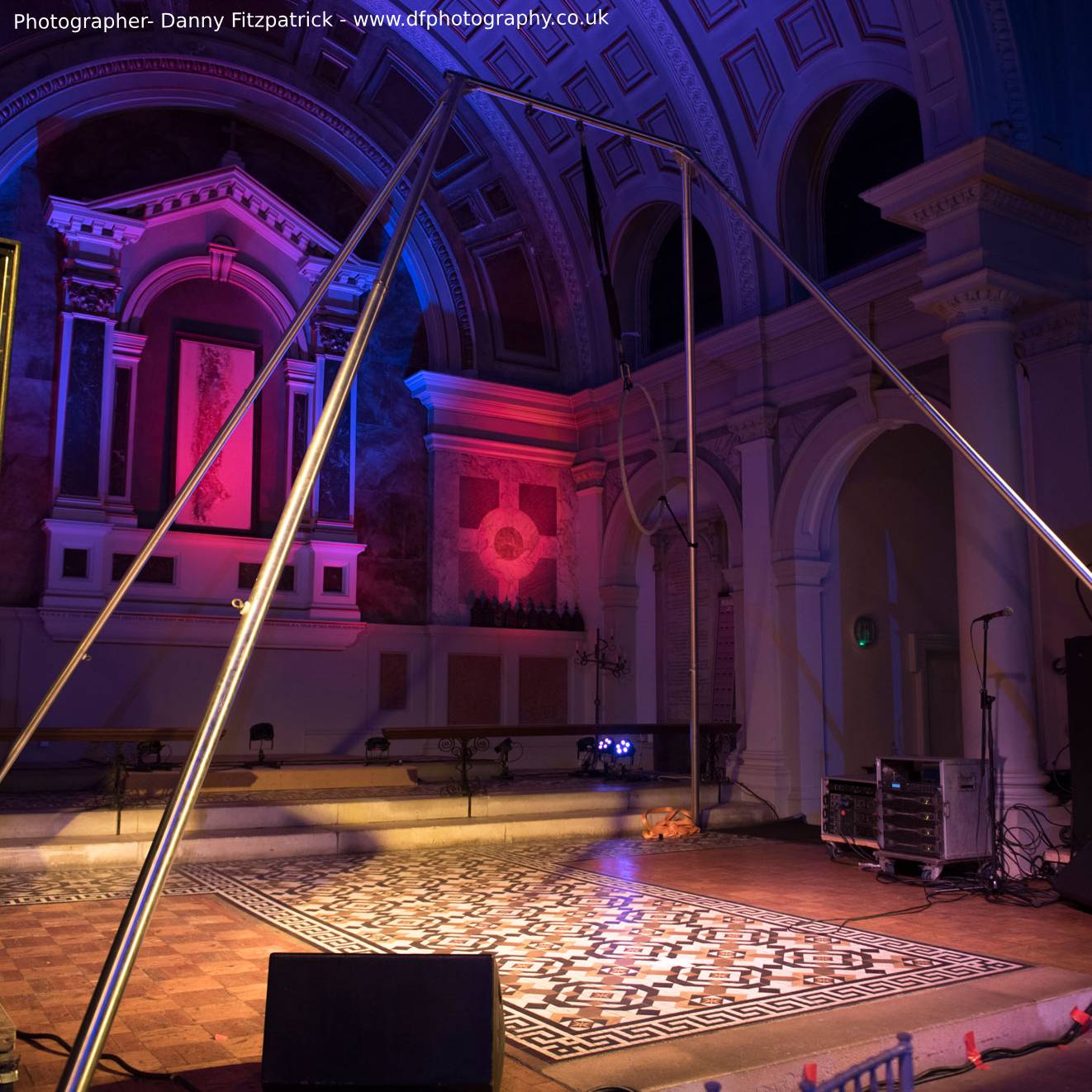

Though we built this A-frame to use outdoors, where no rigging points are found, it is perfect for use in any building where you can't rig to the existing structure. The grip on the base of the feet will provide traction without damaging floors, allowing it to be set up without issue.

The feet can be bolted to the floor if you intend a semi-permanent indoor installation.

Rigging Versatility

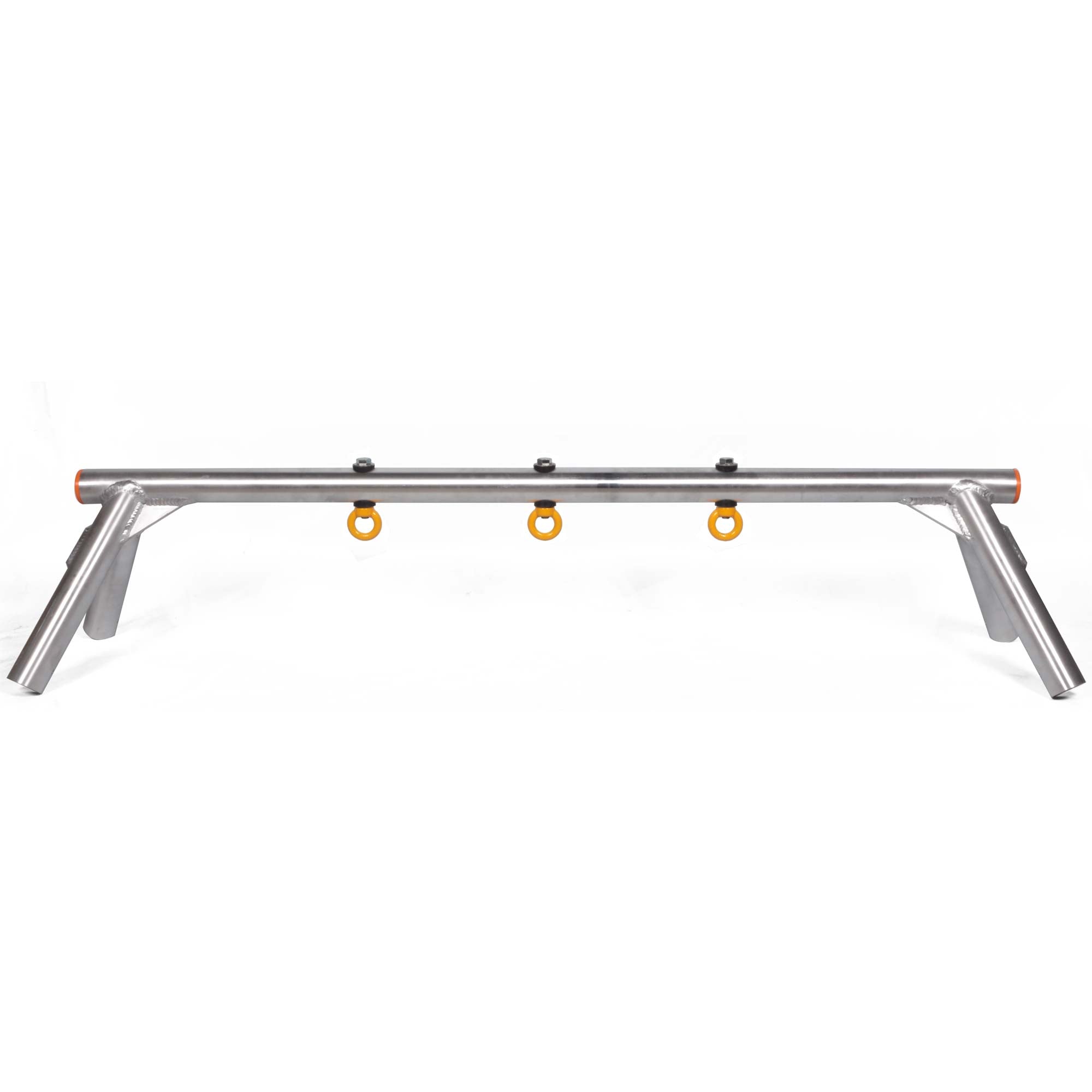

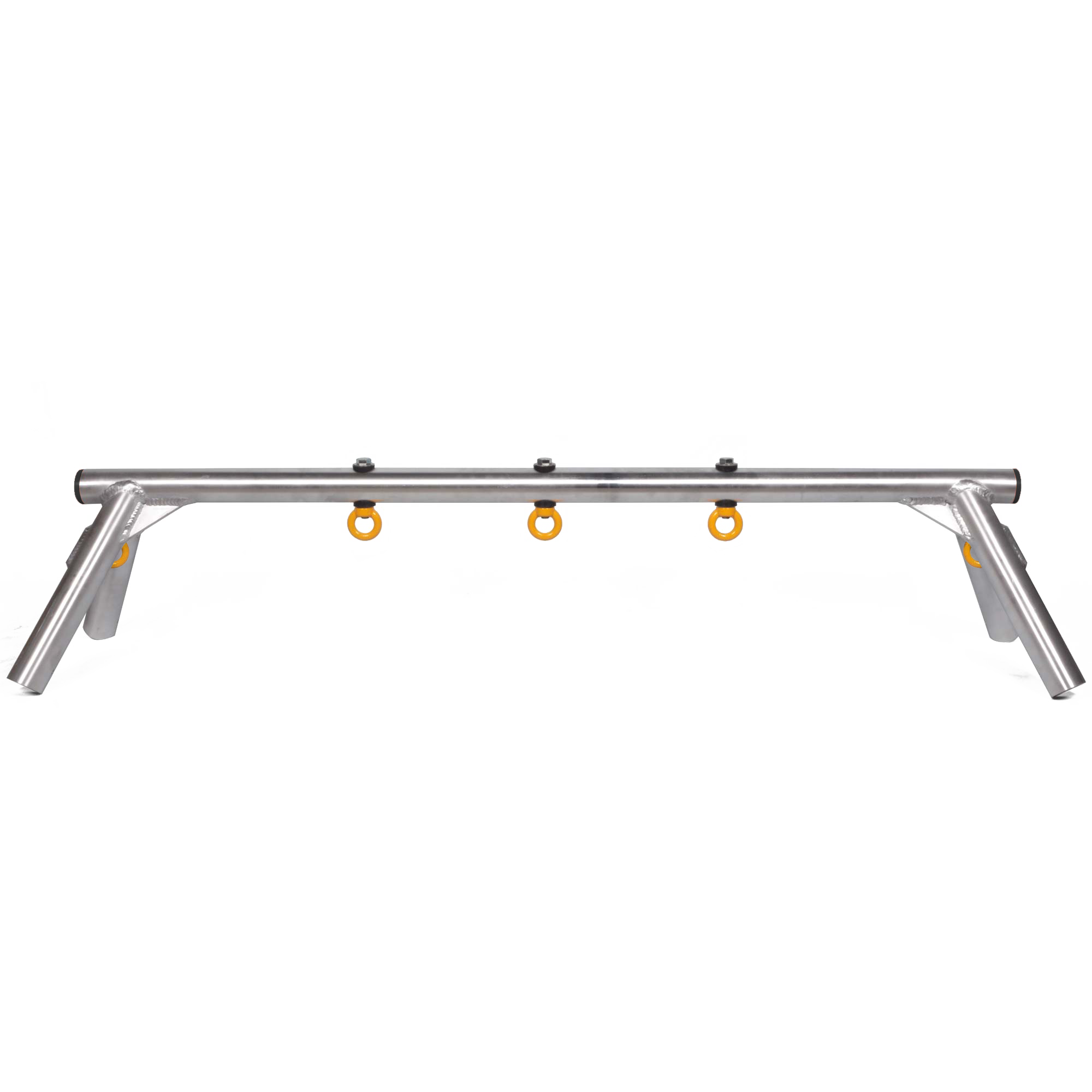

The crane bar has five rigging points: three central and two for safety lines and pulley setups. The crane features a central solid plug for load distribution. The legs all feature chest height connection points for tying off or connecting carabiners.

Construction

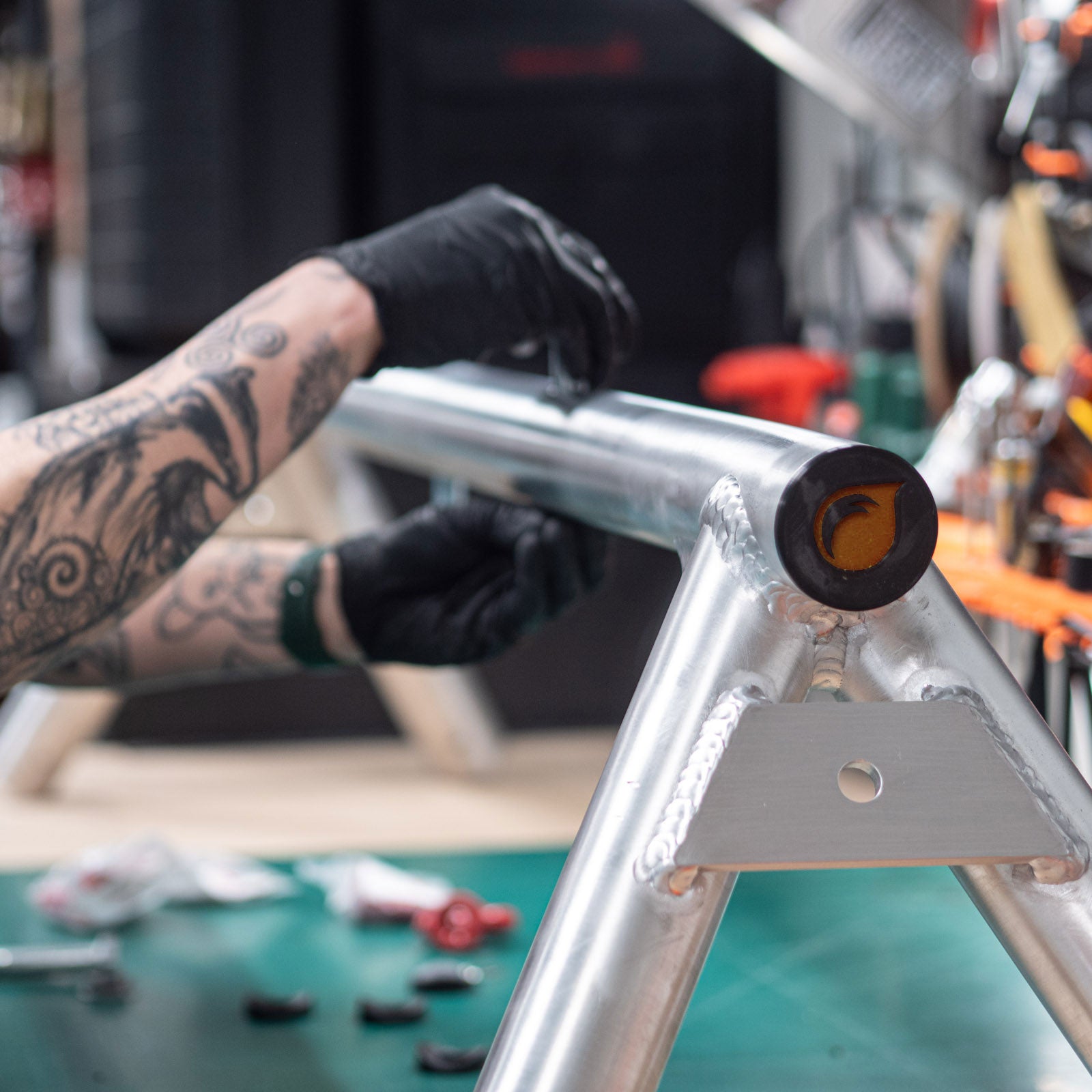

Our aerial rig has been fully CAD designed and engineered to give it the optimal strength to weight ratio. We have fully developed and manufactured these rigs in the UK. All parts are machined in-house to precise tolerances and all joins are engineered to ensure exact fits before welding. These include high precision twinned bird's mouth cuts and bespoke gusseting.

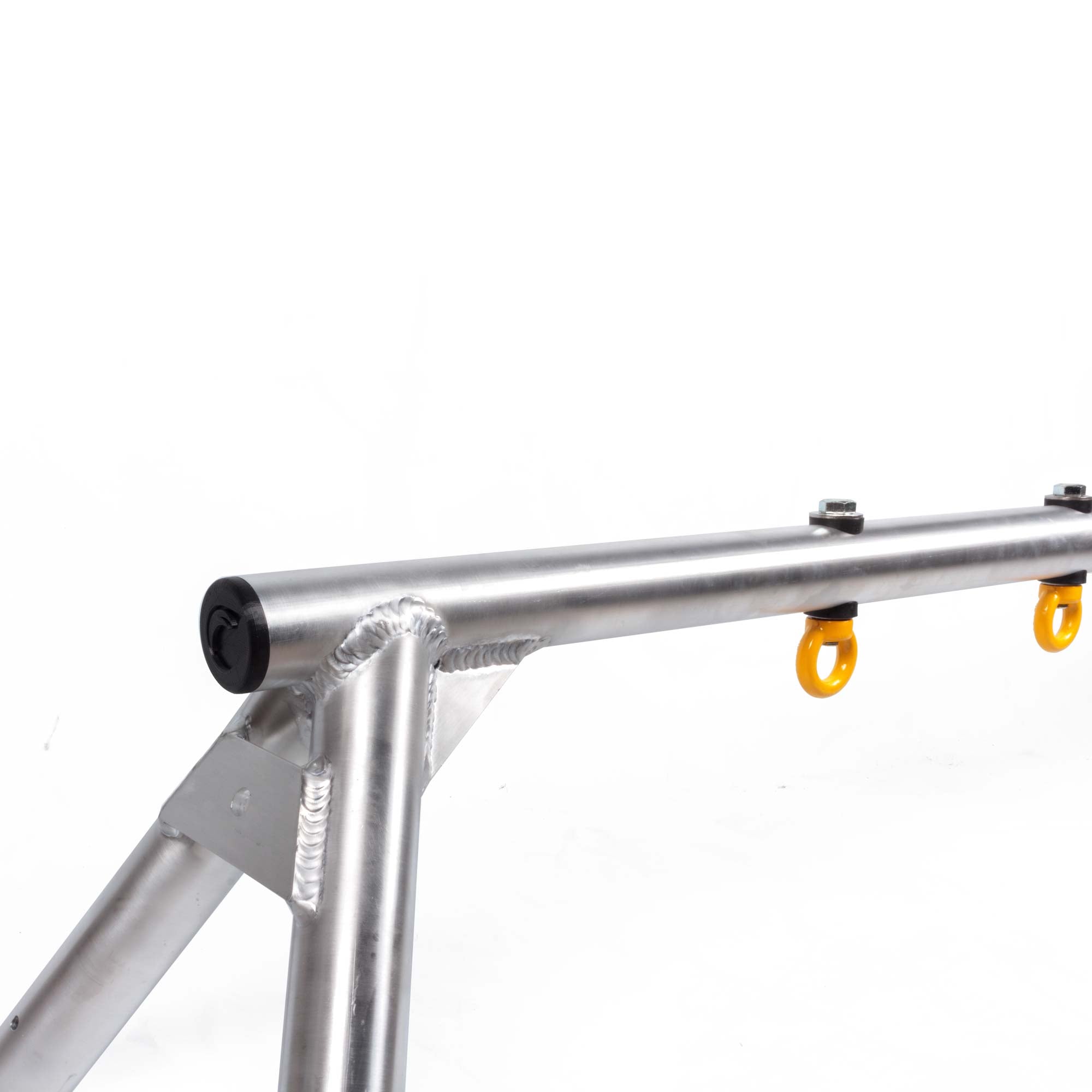

We've used 3 phase industrial TIG welding. This type of welding is achieves maxium tensile strength while providing aesthetically pleasing welds. All joins are triple welded for ultimate strength: a root pass, a second pass, and a weaved capping pass. "

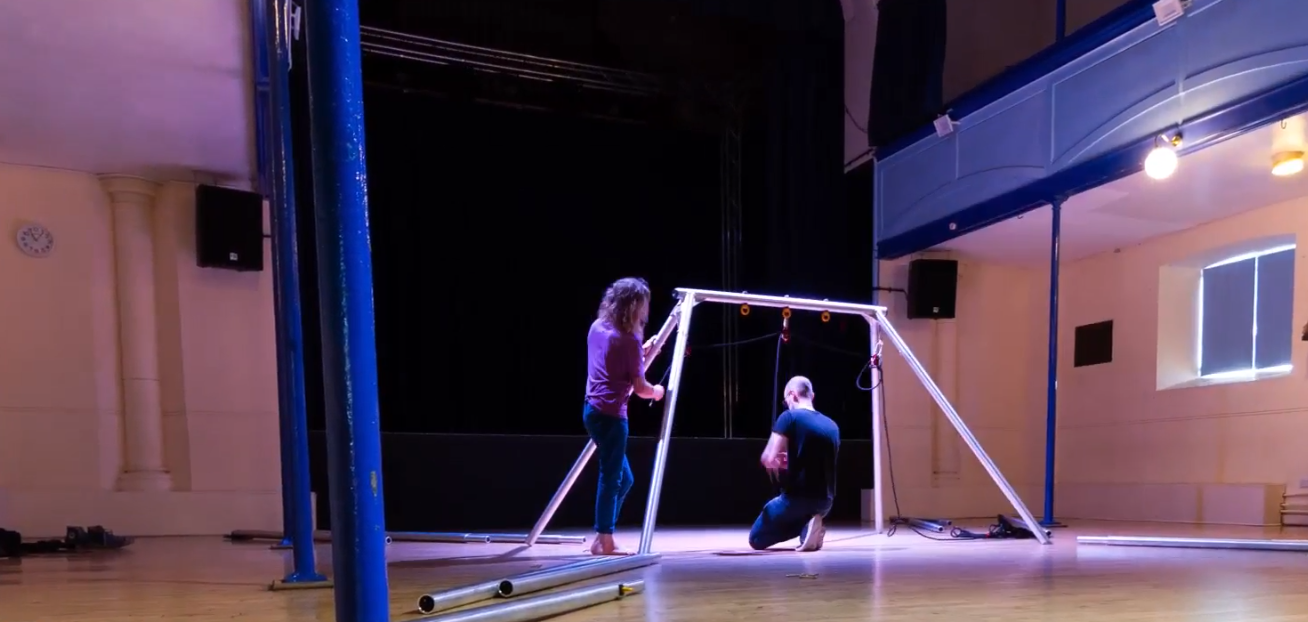

Firetoys Big Rig assembly

Tech Specs

The Firetoys BigRig has been fully strength tested and comes with certified working load limits (WLL). Destructive tests at an external professional load testing house were carried out to certify this rig. This gave us a WLL of 174kg at a safety ratio of 10:1.

We also performed extensive in-house dynamic load testing using fully calibrated load cells, imparting real-time forces of up to 1.74 kN. Certificates are available on request.

  • Base: 7.3m x 7.3m (24' x 24')
  • Height: 5.6m (18'5")
  • Top Bar Width: 1.67m (5'6")
  • Material: Polished Aluminium
  • Weight: 100kg (221 lbs)
  • Maximum Component Length: 1.9m (6'3")
  • Working Load Limit: 174kg (384 lbs)

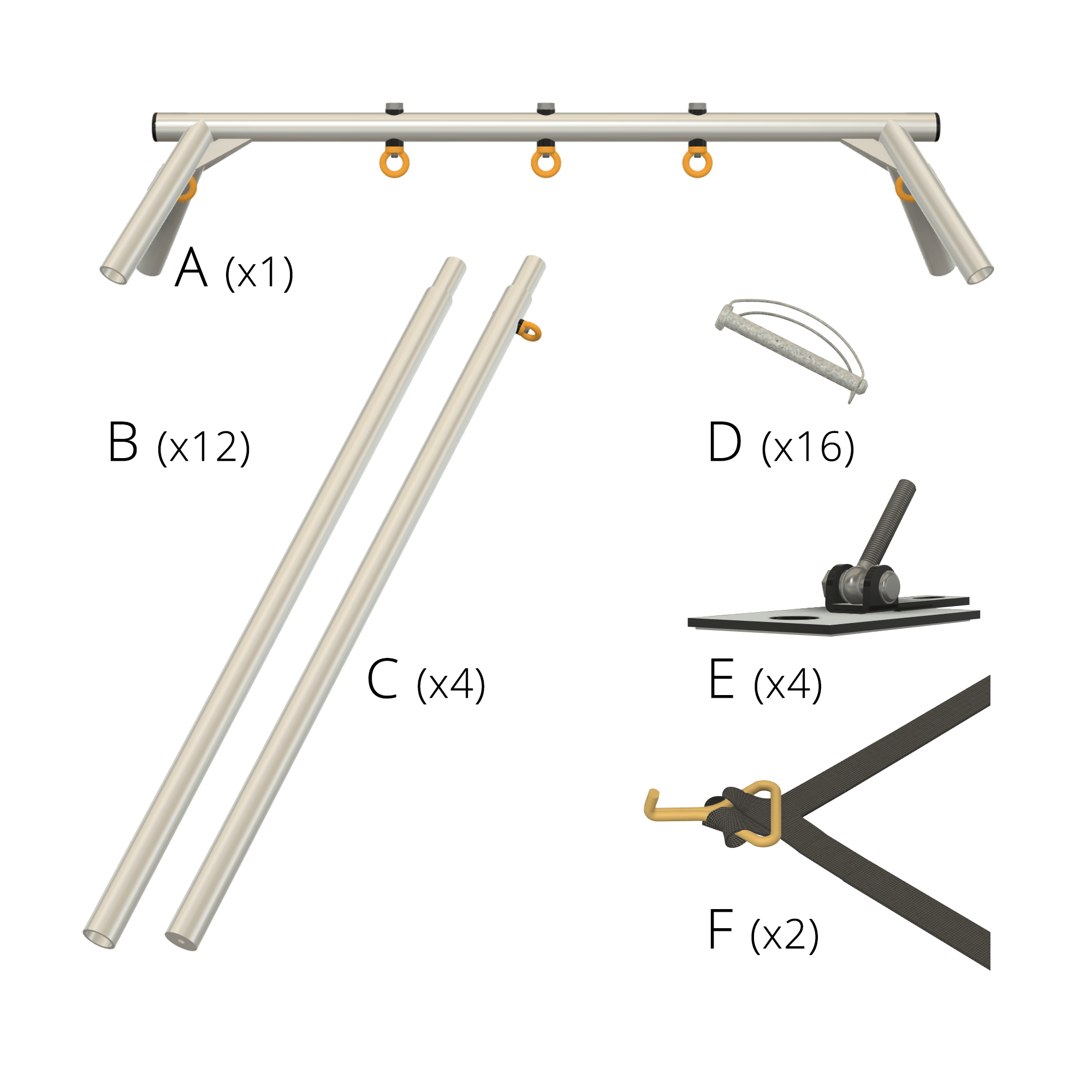

Contents

All the components of the Firetoys BigRig are as follows, and everything listed here is included as standard

  • 1x top crane (A)
  • 12x internal legs (B)
  • 4x bottom legs with foot inserts (C)
  • 16x leg pins (D)

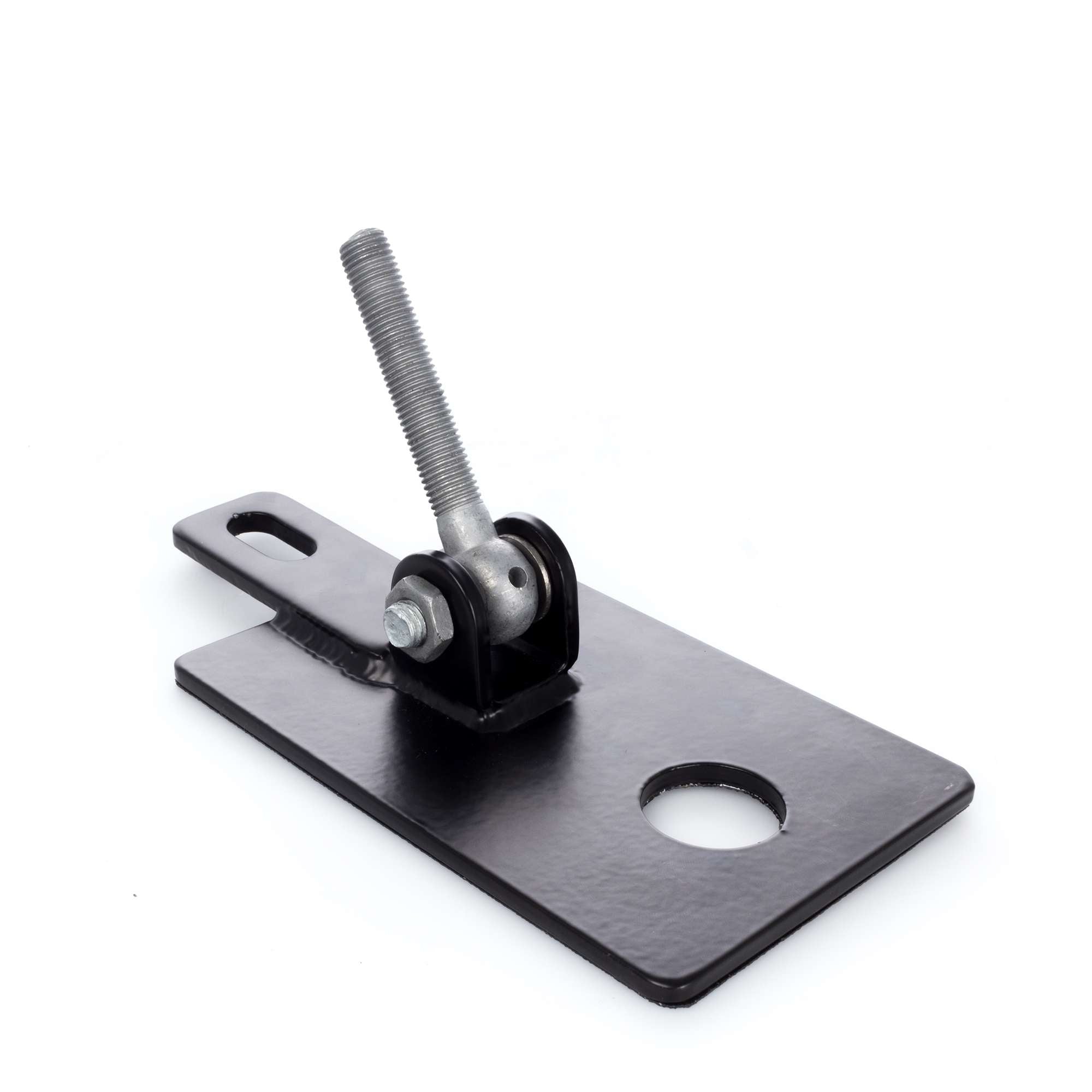

  • 4x heavy duty foot with grippy pad (E)
  • 2x sets of floor straps (1 for each height of rig) (F)

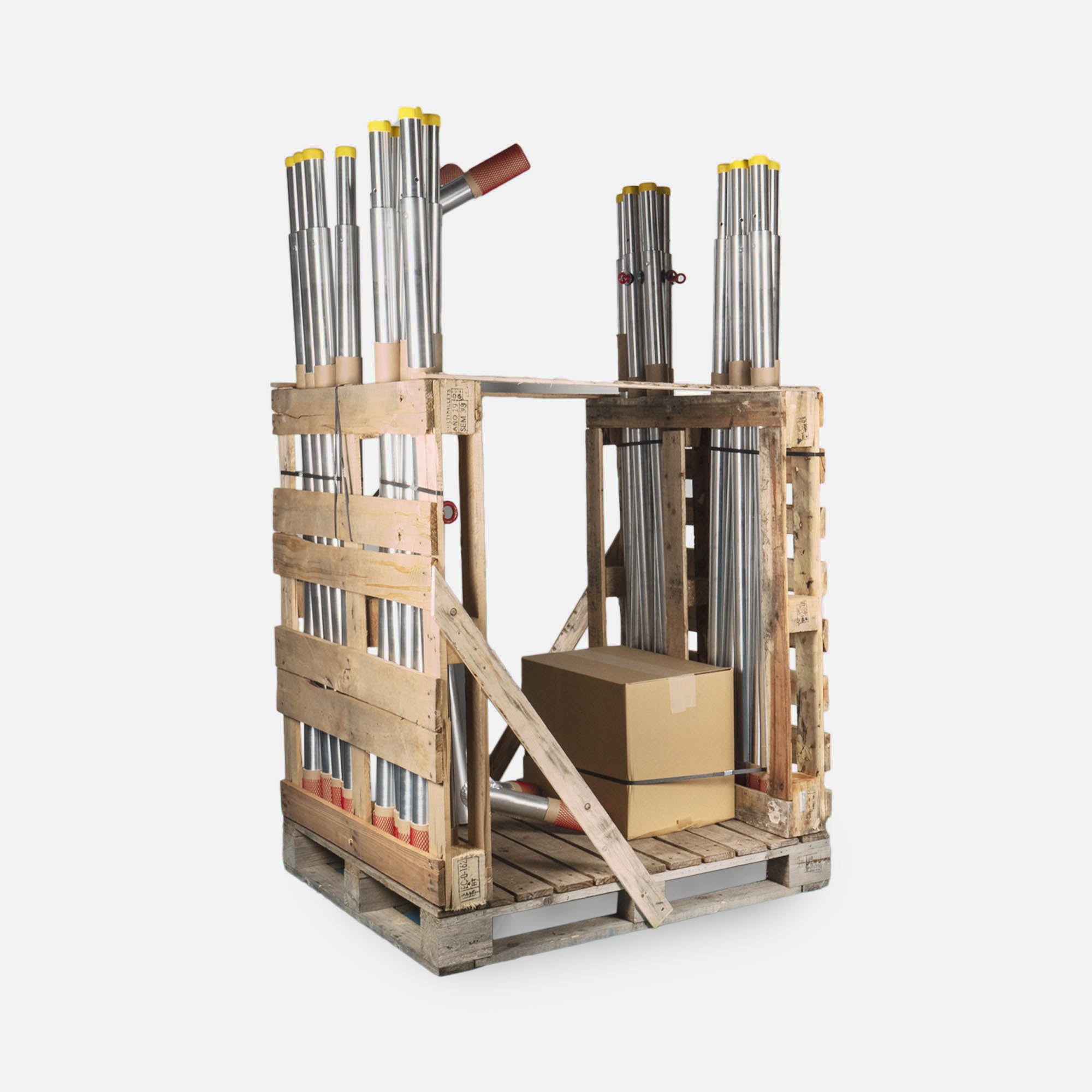

Delivered on a pallet

This product will be delivered on a pallet (lorry access required).

Pallet Dimensions: 100cm x 125cm x 200cm (h).
